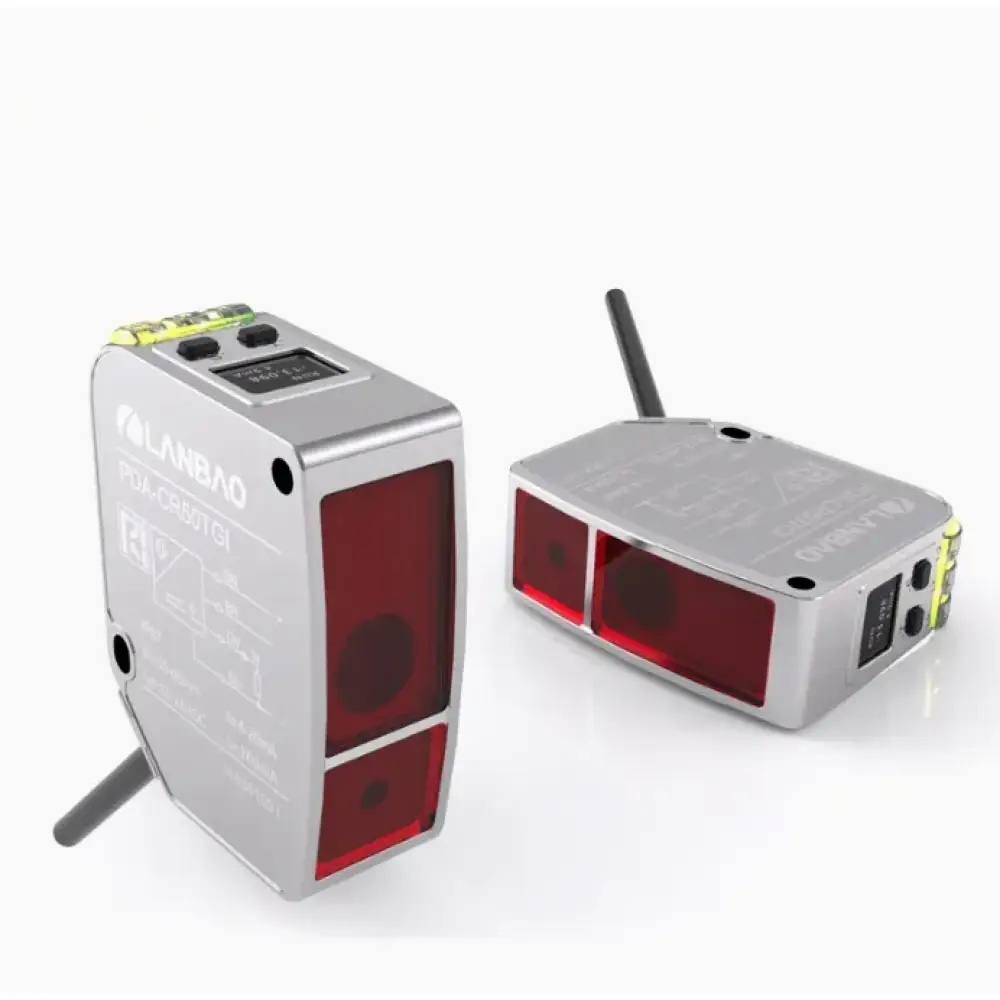

RS-485
|
PDA-CR50DGR
|
4...20mA
|
PDA-CR50TGI
|
||
|
Center distance
|
50mm
|
|
Measuring range
|
±15mm
|
|
Full scale(F.S.)
|
30mm
|
|
Supply voltage
|
RS-485:10...30VDC;4...20mA:12...24VDC
|
|
Consumption power
|
≤700mW
|
|
Load current
|
200mA
|
|
Voltage drop
|
<2.5V
|
|

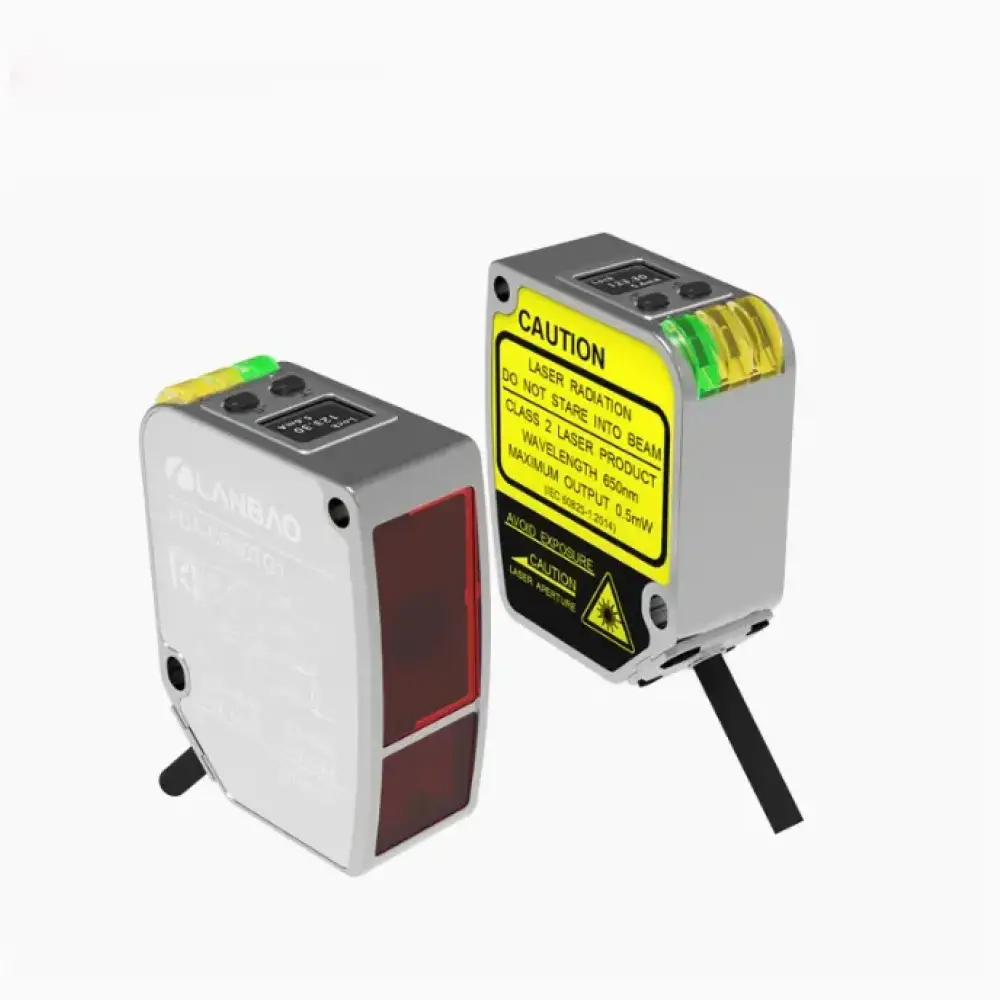

Light source
|
Red laser(650nm);Laser level:Class 2
|
|
Light spot
|
Φ0.5mm@50mm
|
|
Resolution
|
10um@50mm
|
|
Linear accuracy
|
RS-485:±0.3%F.S.;4...20mA:±0.4%F.S.
|
|
Repeat accuracy
|
20um
|
|
Output1
|
RS-485(Support Modbus protocol);
4...20mA(Load resistance<390Ω) |
|
Output2
|
PUSH-PULL/NPN/PNP And NO/NC Settable
|
|
Distance setting
|
RS-485:Keypress/RS-485 setting
4...20mA:Keypress setting |
|
Response time
|
2ms/16ms/40ms Settable
|
|
Dimension
|
65*51*23mm
|
|
Display
|
OLED Display(size:14*10.7mm)
|
|
Temperature drift
|
±0.02%F.S./ºC
|
|
Indicator
|
Power indicator:Green LED;Action indicator:Yellow LED;
Alarm indicator:Yellow LED |
|
Protection circuit
|
Short circuit,reverse polarity,overload protection
|
|
Built-in function
|
Slave address & Port rate setting ;Average setting;Product self-check
Analog map settings;Output setting;Restore factory settings Single point teach;Window teach;Parameter query |
|
Service environment
|
Operation temperature:-10…+50ºC
Storage temperature:-20…+70ºC Ambient temperature:35...85%RH(No condensation) |
|
Anti ambient light
|
Incandescent light:<3,000lux
|
|
Protection degree
|
IP67
|
|
Material
|
Housing: ABS;Lens cover:PMMA
|
|
Vibration resistance
|
10...55Hz Double amplitude1mm,2H each in X,Y,Z directions
|
|
Impulse resistance
|
500m/s²(About 50G)3 times each in X,Y,Z directions
|
|
Connection way
|
RS-485:2m 5pins PVC cable;4...20mA:2m 4pins PVC cable
|
|
Accessory
|
Screw(M4×35mm)×2,Nut×2, Washer×2,Mounting bracket,Operation manual
|
|
Remark
|
1. Test conditions:Standard data at 23 ± 5 ºC ;Supply voltage 24VDC;30 minutes' warmup before test;Sampling period 2ms;Average sampling times 100;Standard sensing object 90% white card
2. The statistical data follows the 3σ criteria
3. Repeat accuracy:23 ± 5 ºC environment,90% reflectivity white card,100 test data results
4. Slave address,baud rate setting only for RS-485 series
5. Protecion circuit only for switch output
6. Product operation steps and precautions in "Operation manual"
|
