Displacement sensor:

The main purpose is to accurately measure the displacement of an object, including linear displacement and angular displacement.

The high-reliability integrated sensor structure
Products have passed the verification tests of various international standards such as high and low temperature, vibration, and shock, and can fully meet the application scenarios of most industries. Commonly used industrial interfaces (RS485, analog output, etc.) can be connected directly from the probe, which is convenient for product integration into various industrial automation equipment.

Model	PLR3030	PLR3030L	PLR3050	PLR3080	PLR3080L	PLR3150	PLR3150L	PLR3400	PLR3400L	PLR3450	PLR3450L
Clearance Distance (CD, mm)*1	30	30	50	80	80	150	150	400	400	450	450
Measurement range (mm)	±5	±5	±0.8	±15	±15	±40	±40	±100	±100	±250	±250
Spot diameter (μm)	Φ36	Φ36*400	Φ26	Φ71	Φ71*800	Φ115	Φ115*1400	Φ305	Φ305*3400	Φ315	Φ315*4200
Resolution(μm)*2	0.16	0.16	0.06	0.4	0.4	1.1	1.1	2.5	2.5	7.5	7.5
Resolution(μm)*3	0.01	0.01	0.02	0.2	0.2	0.2	0.2	1.3	1.3	1.5	1.5
Linearity(μm)*4	<±2	<±2	<±0.5	<±6	<±6	<±16	<±16	<±60	<±60	<±250	<±250
Scan Rate	Max 160kHz (Ethernet version)/Max 50kHz (RS485 version)
Light source*5	655nm, Max. 4.9 mW
Temperature Drift	0.01% of F.S./°C
Communication interface*6	Ethernet, RS485, analog signal output *7(Max. ± 10V, 4 - 20mA)
Measurement and Control Software	C++, C # development packages
Working Mode	Work independently without controller
Housing	IP67 (IEC60529)

* 1. is calculated based on the center position of the measuring range;
* 2. Measure the standard white ceramic sample at 50kHz without averaging, and take the root mean square deviation(1 δ)of 65536 sets of measurement data;
* 3. When measuring standard white ceramic samples with an average freguency of 1024 at 50kHz, take the root meansquare deviation(1 δ) of 65536 sets of measurement data;
* 4. Calibration and verification using a nanometer level high-precision laser interferometer;
* 5. The laser power can be customized according to different application requirements, and some models offer 405nm blue light versions;
* 6. probes can independently provide voltage, current, and RS485 output;
*7.optional analog voltage/current output modules;

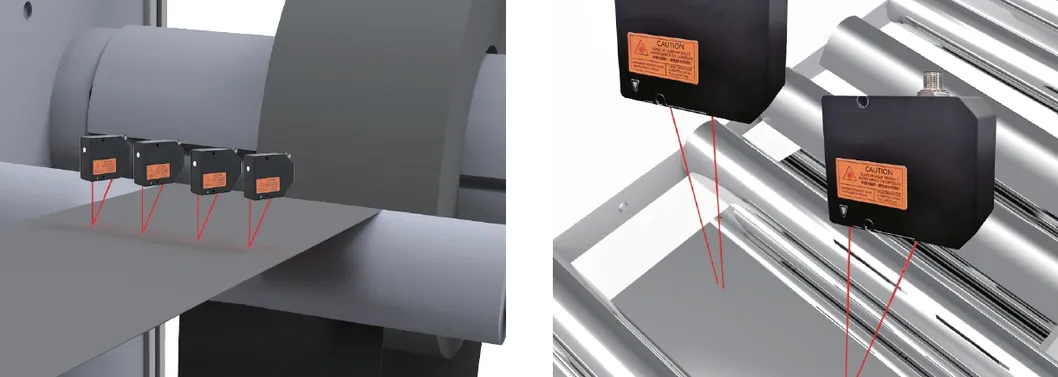

Measuring the thickness of electrode material coatings Measuring end face undulation after foil cutting

Versatile Laser Displacement Sensor for Wide Range of Applications Some Models Can Choose Ultra Wide Light Spots, Suitable Forrough Surfaces

Versatile Laser Displacement Sensor for Wide Range of Applications Some Models Can Choose Ultra Wide Light Spots, Suitable Forrough Surfaces

Versatile Laser Displacement Sensor for Wide Range of Applications Some Models Can Choose Ultra Wide Light Spots, Suitable Forrough Surfaces
