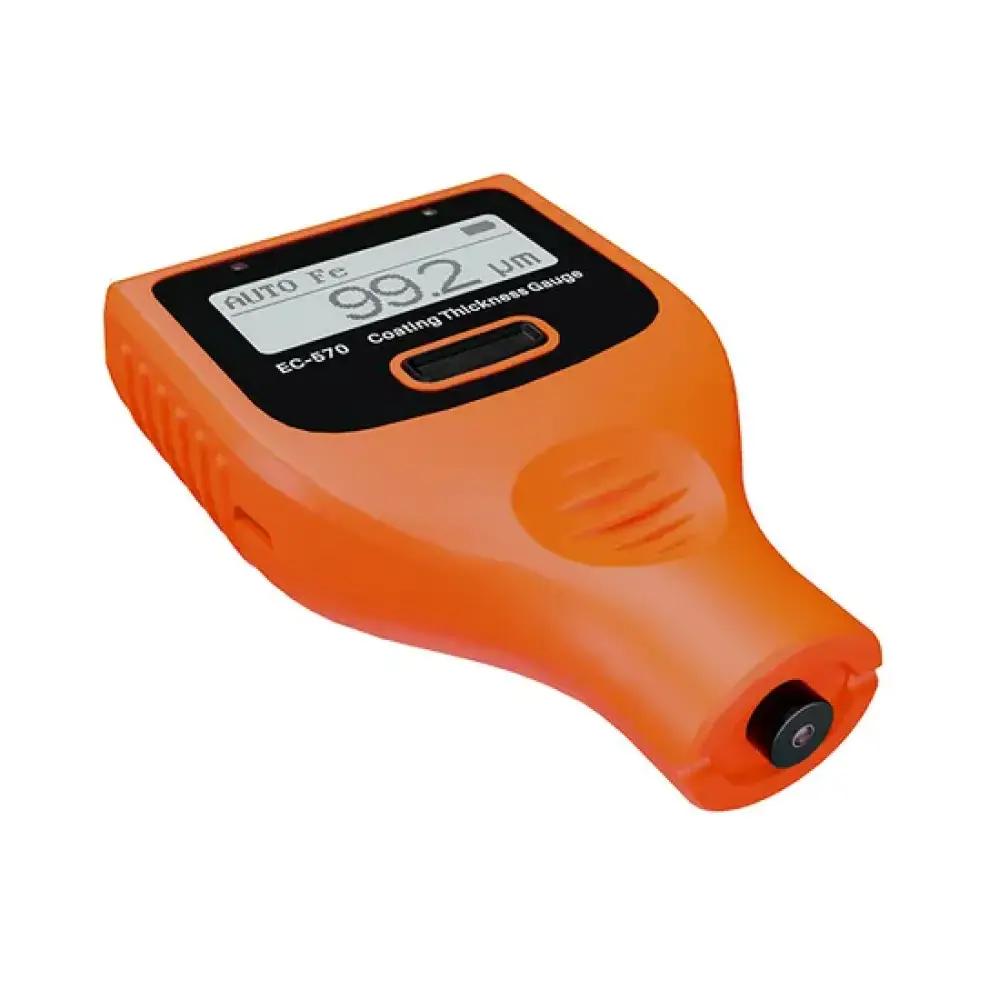

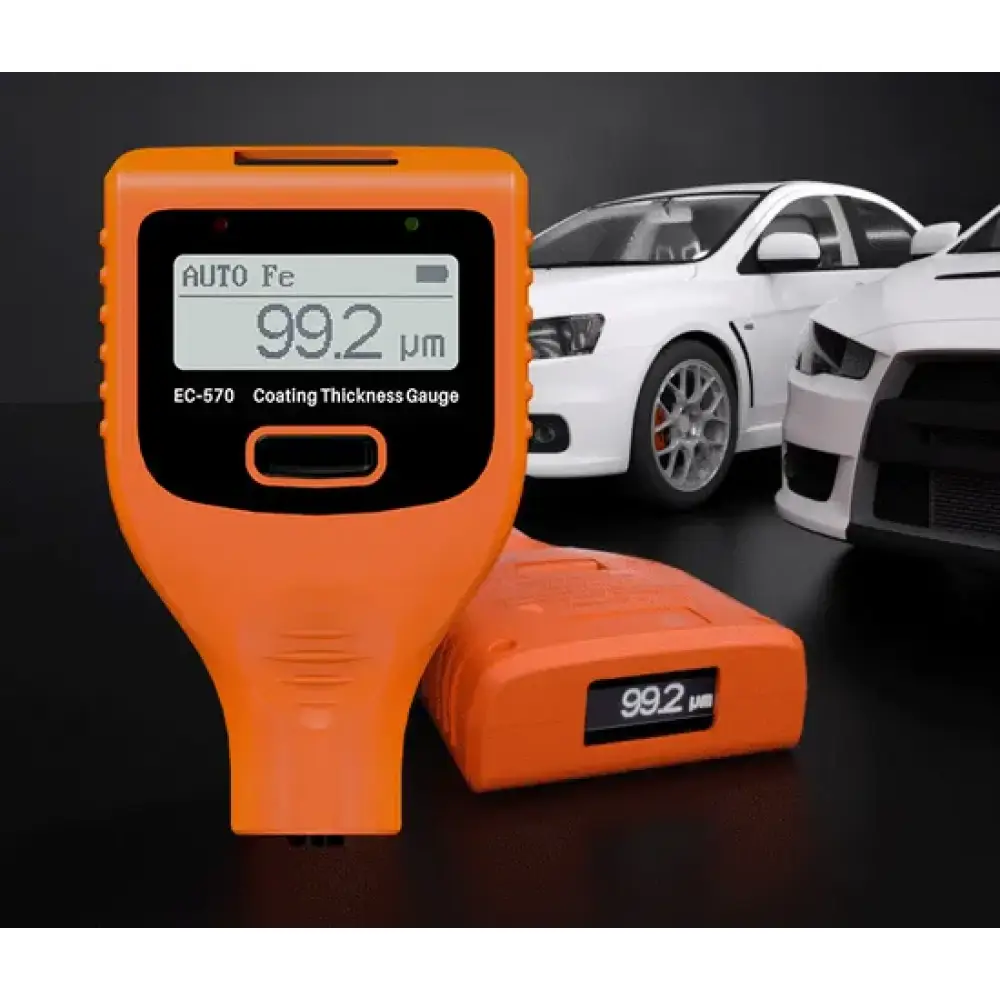

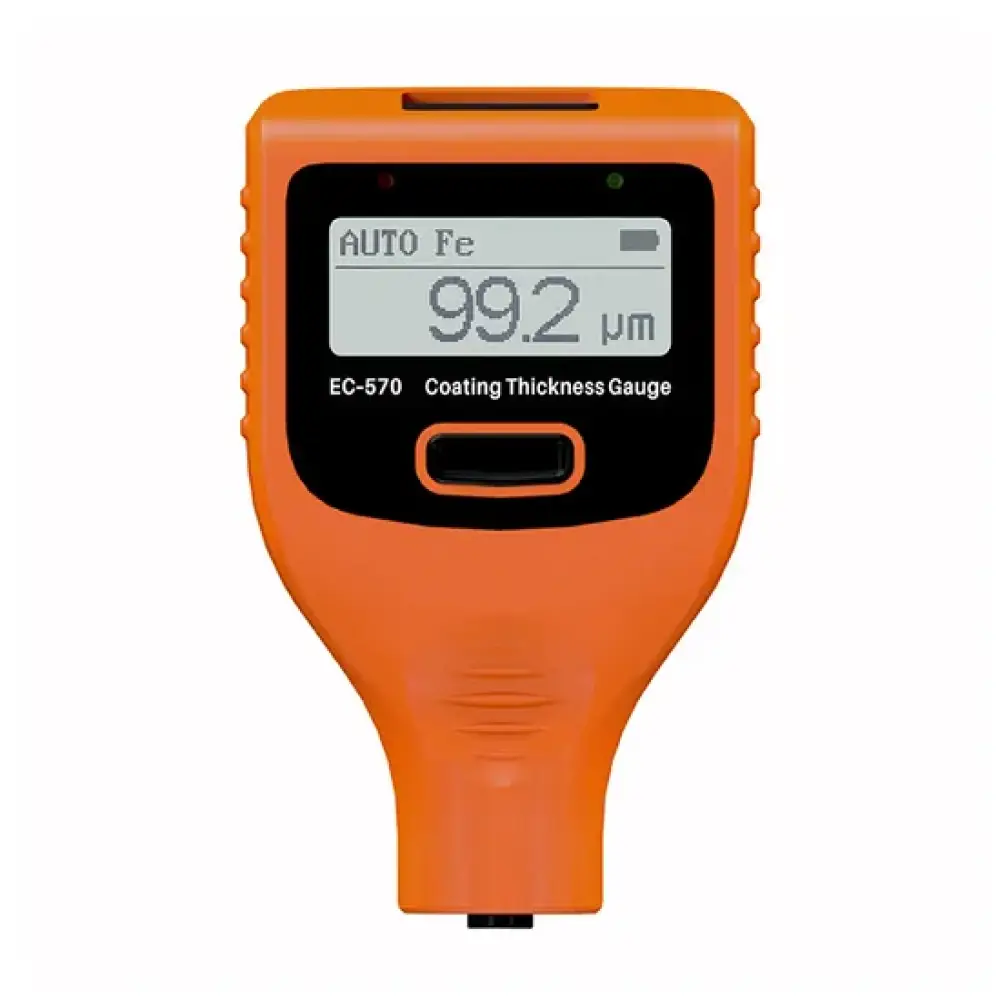

Ec-570 Galvanizing Thickness Measurement Instrument

EC-570 Coating Thickness Gauge is used for non-conductive coatings/non-ferromagnetic metal coatings measurement. Specific uses include measuring the thickness of paint or galvanized layers on iron and stainless steel surfaces, and measuring the thickness of paint or plastic films on aluminum and copper surfaces.

Model	EC-570	EC-570S
Probe position	Internal
Measurement principle	Fe:Magnetic induction;NFe:Eddy current effect
Measurement range	0~2000μm
Accuracy	±(3%+1μm)	±(2%+1μm)
Resolution	0.1μm(0~100μm);1μm(>100μm)
Unit	mm,mm,mil
Iron galvanized identification range	3~500μm	NO
User calibration method	Zero calibration
Probe trigger force	0.5~1.2N
Minimum radius of curvature of substrate	Convex 5mm
	Concave 25mm
Minimum measurement area	Diameter 15mm
Minimum substrate thickness	Fe:0.30mm;NFe:0.05mm	Fe:0.20mm;NFe:0.03mm
Reaction time	Less than 0.5 seconds
Display	Dual screen display
Operation temperature	-10~+50ºC
Storage temperature	-20~+60ºC

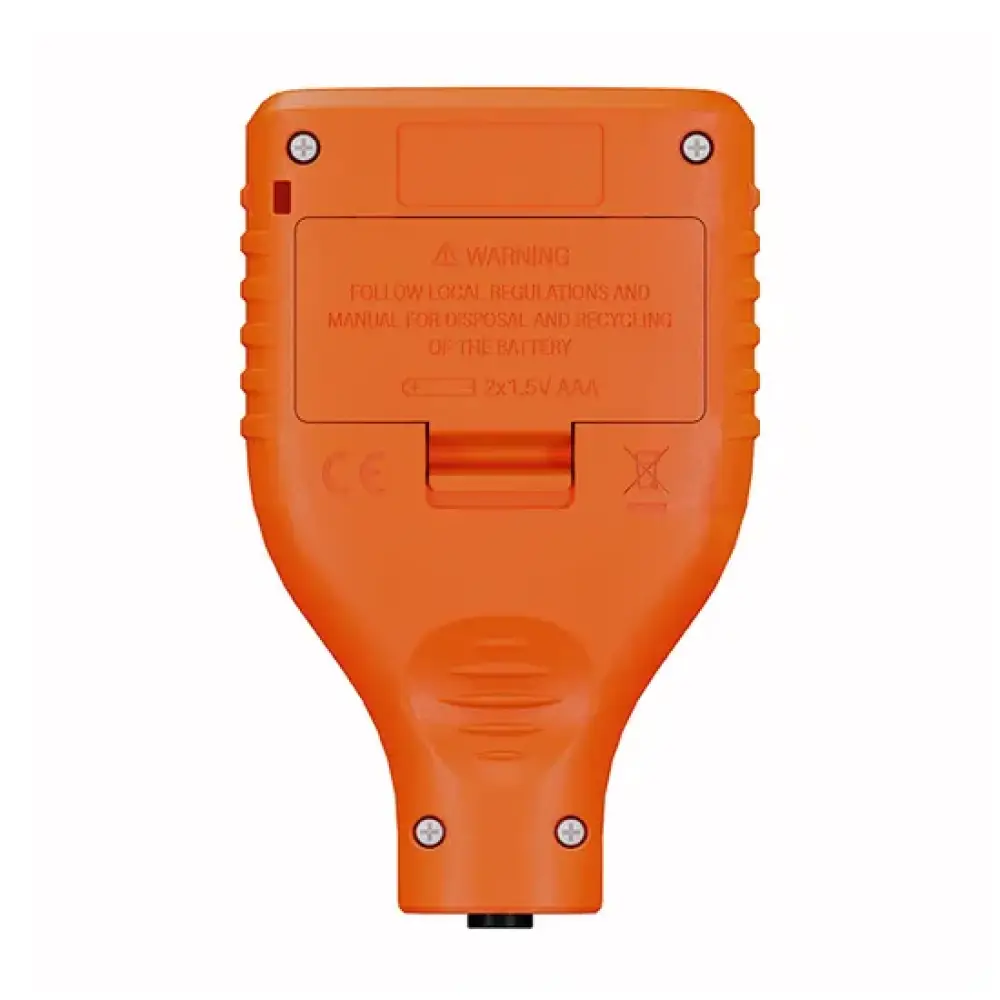

Power supply	2 AAA 1.5V alkaline batteries; 2 AAA 1.2V rechargeable batteries
Protection class	IP40
Dimensions	101*64*25mm
Material	ABS
Weight	About 65g (without batteries)	About 60g (without batteries)
