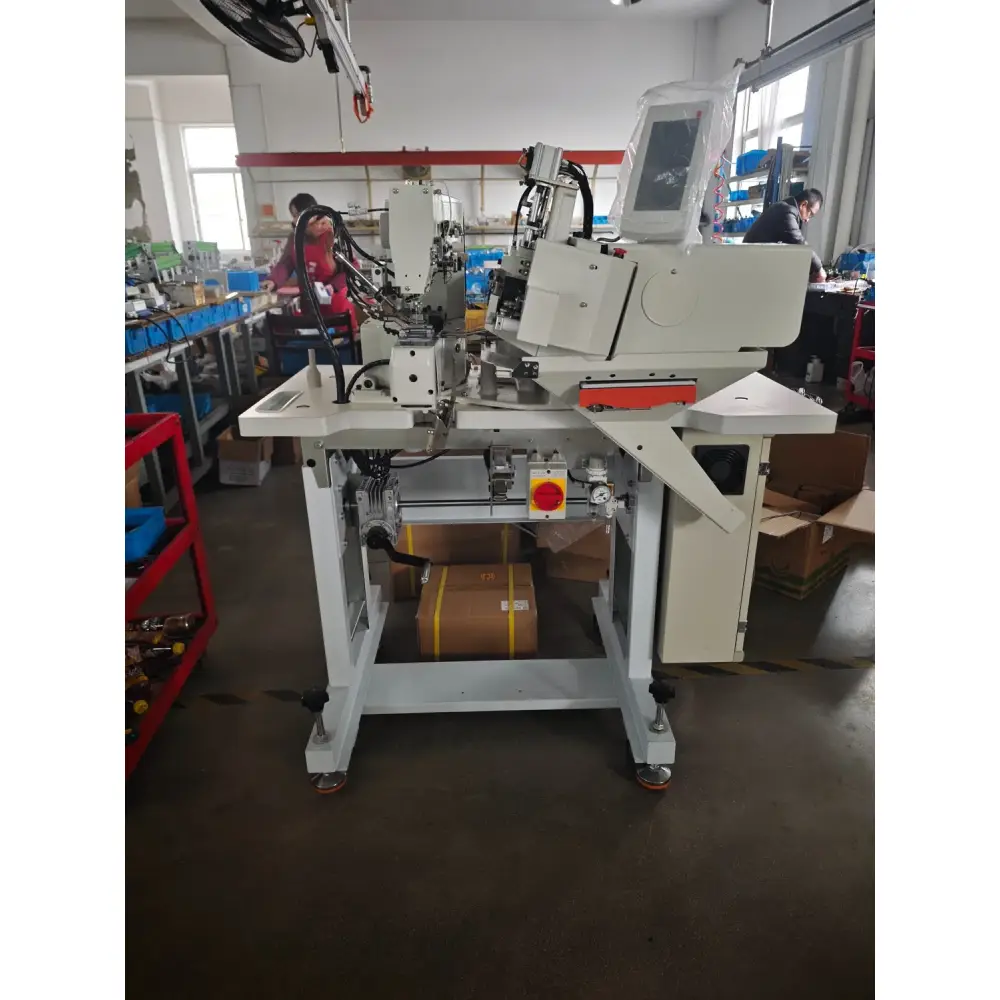

HIGH EFFIENCY EASY OPERATION FOR NEW USERS BEAUTIFUL,NEAT AND UNIFORM STITCHES Easy to pregram any personalized pattern required except the normal bar tacking design. Automatically feel the belt, no need manually operate ensures exactly same position every feeding. Automatically fold the belt after cutting and send to next step. No need stop the machine to finish the double bar tacking. Automatically cut belt, up to 75mm on Y direction. The heigh of the working table can be easily adjusted to match the operators height. |
|
|
Head
|
computerized2needlelock stitch machine withbar tacking
|
|
Maxim speed
|
2800rpm
|
|
Stitch
|
Lockstitch
|
|
Needle bar stroke
|
45.7mm
|
|
Needle
|
DP×17(21#)19-21#
|
|
Hook
|
Horizontal 1.8times rotating hook
|
|
Foot lift height
|
21mm
|
|
Stitch number
|
8,36,42(option in panel)
|
|

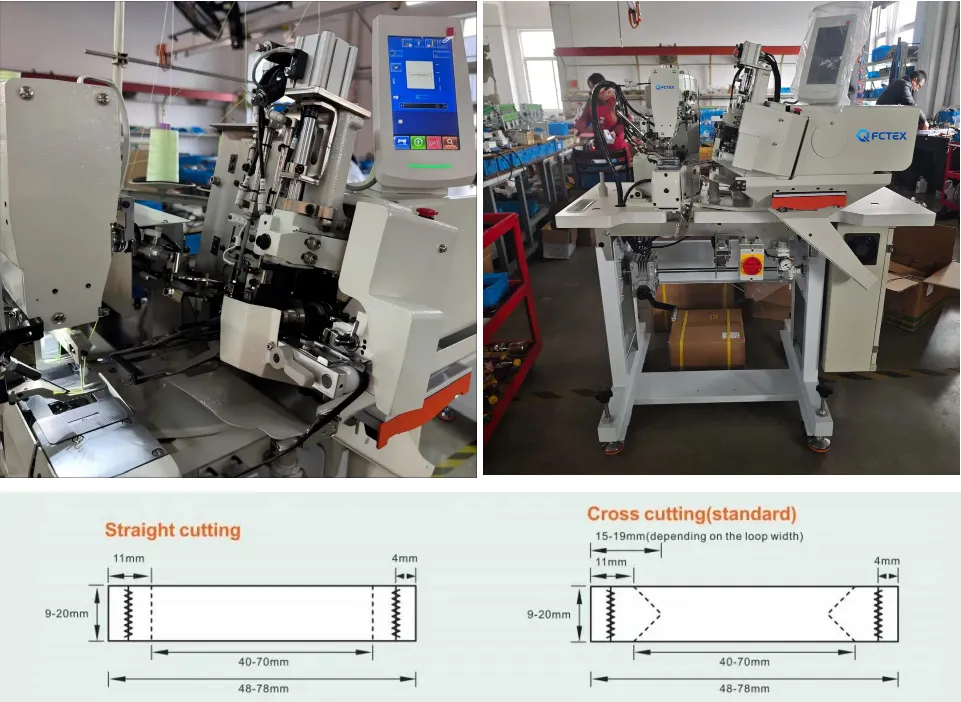

Stitch distance
|
40-70mm(1-37,64"~2-3/4")
|
|
Tacking stitch length
|
7-22mm(9/32~55/64*),< Adjustment 0.1mm>
|
|
Tacking stitch width
|
1-3.2mm(3/64~1/8"), Adjustment 0.1mm
|
|
Memory pattern
|
99pcs
|
|
Loop width
|
9-18mm
|
|
Finished loop length
|
48-78mm(1-57/64"~3-5/64*)
|
|
Operate time
|
1.2seconds/one loop(28stitch)
|
|
Front hook location
|
by motor drive
|
|
Bobin winde
|
Electronic
|
|
Power
|
220VSinglephase220V
|
|
Air consumption
|
0.5MPa,32Nr/minute
|
|
Gross weight
|
230kgs
|
|
Volume(LxWxH)
|
1220×880×1400mm
|
