Model NO.

GF50-10mm

Movement

Linear Displacement

Production Process

Injection

Material

Stainless Steel

Accuracy Grade

0.5G

IP Rating

IP65

Certification

Customized

Transport Package

Carton Box

Specification

20*8*8

Trademark

NorwisTech

Origin

Guangdong

HS Code

9031809090

Production Capacity

50000000/Year

Package Size

12.00cm * 8.00cm * 8.00cm

Package Gross Weight

1.000kg

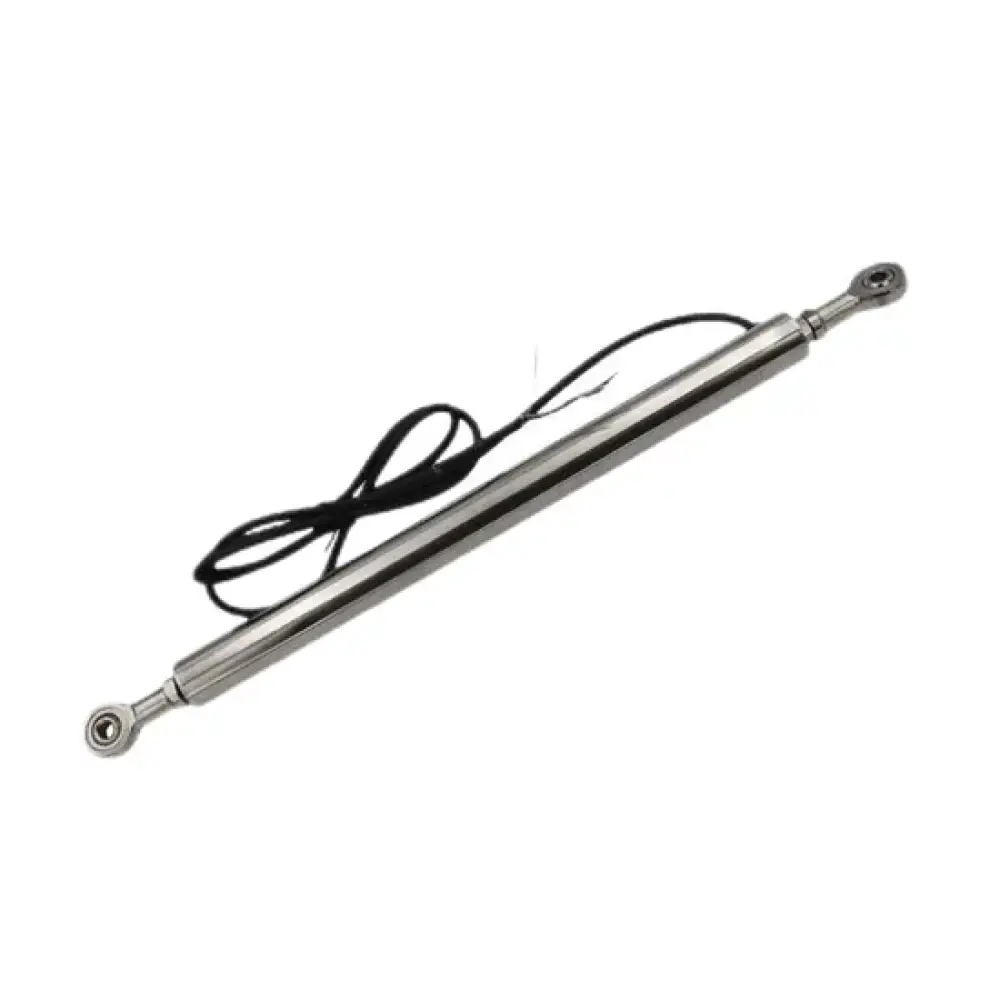

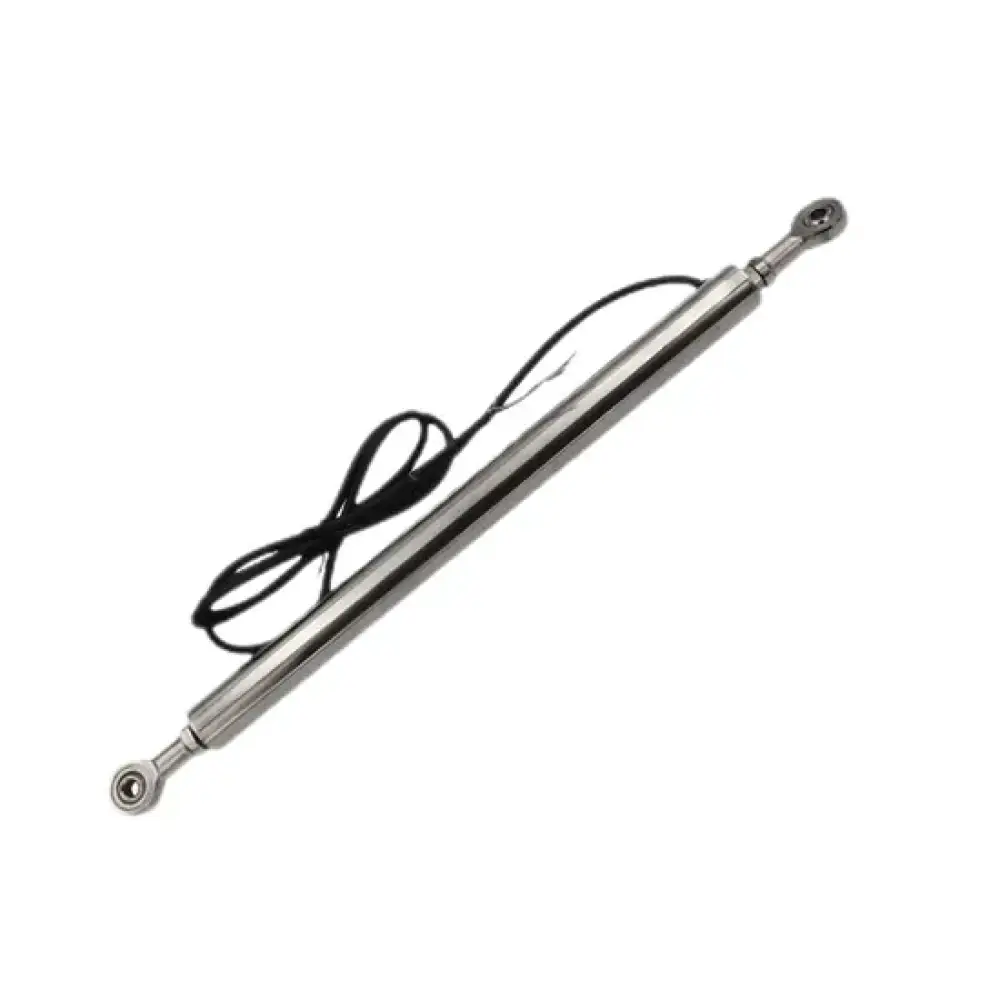

GF series split LVDT displacement sensor(crack meter)is specially used for on-line monitoring of crack depth,width and opening and closing degree in bridge,tunnel,building,concrete pavement and other civil engineering projects.The sensor is powered by 12-24V DC,with fisheye heads at both ends.The electronic circuit is sealed in 304 stainless steel metal tube,which can be used in open air or in humid environment for long-term stable work.Output standard 0-5V,0-10V voltage signals which can be used by computer or PLC;4-20mA current signal;RS485 digital signal

Power supply	12-24 VDC
Working current:	Voltage output type, power supply current≤12mA; Two wire current output type, supply current 4-20mA
Displacement range:	GF25:0-5m GF50:0-10mm GF125:0-25mm GF250:0-50mm GF500:0-100mm GF1250:0-250mm GF2500:0-500mm
Output signal	0-5V;0-10V;4-20mA;RS485 digital signal
Linear error	Analog signal output:0.25% FS Digital signal output:0.1% FS
Repetition error	≤1um
Resolution	≤O.1um
Dynamic characteristi	10Hz
Measuring force	80g
Operating temperature	-25°C --- +85 °C
Impact resistance	250G/11 ms
Vibration tolerance	10g/2KHz
Temperature coefficie	Zero point≤0.01/°C;Sensitivity ≤025/°C

GF50-10mm Lvdt Linear Position Sensor Transducer Stroke 5mm 0-5V Signal Output
